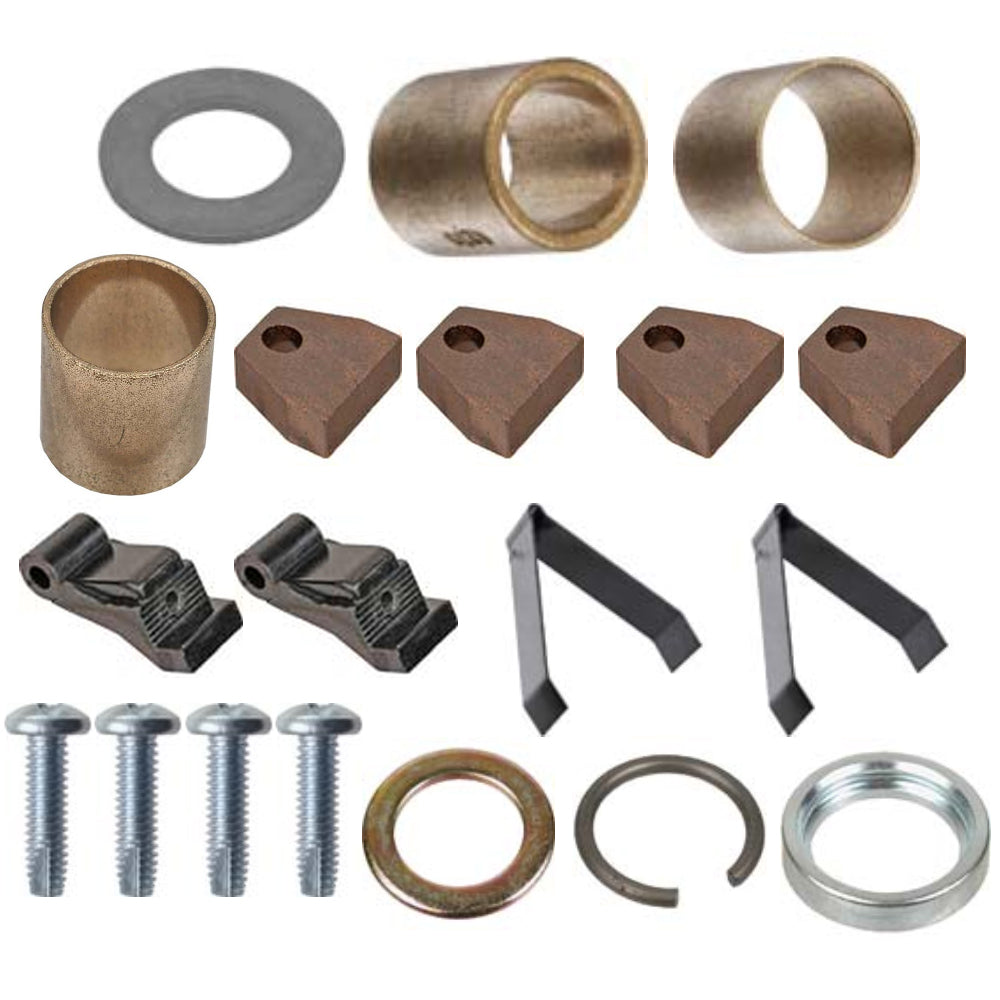

1107386 One Aftermarket Starter Repair Kit Fits Teledyne Wisconsin Fits Delco 12

Models This Part Fits:

30MT, VH4D, V461D, 20MT, 35MT, 27MT, 25MT, 10MT, VF4, TJ, THD, VG4D, Stand Up Lift Truck, VF4D

Additional Information:

(1) Thrust Washer: Measurement: Standard ID: 0.563" / 14.3mm OD: 1" / 25.4mm Thickness: 0.058" / 1.47mm Replaces Part Numbers: 1914842 (1) Commutator End Bushing: Location Used: DE Housing ID: 0.501" / 12.73mm OD: 0.627" / 15.93mm Width: 0.776" / 19.7mm Bushing Type: Oilite Bushing Size: Standard Replaces Part Numbers: 10470767, 1857960, 1862383, 1862391, 1906945, D1689 (1) Center Bushing (Early): ID: 0.755" / 19.18mm OD: 0.815" / 20.7mm Width: 0.715" / 18.16mm Bushing Type: Oilite Replaces Part Numbers: 1934485 (1) Center Support Bushing (Late): ID: 19.23mm OD: 22.34mm Length: 18.30mm Replaces Part Numbers: 1894023 (1) Starter Bushing: ID: 0.564" / 14.33mm OD: 0.629" / 15.98mm Width: 0.65" / 16.51mm Replaces Part Numbers: 1938743, 35058, 810620, 9B-9103, D1676, MCX203 (4) Starter Brushes: Length: 0.63" / 16mm Width: 0.748" / 19mm Height: 0.256" / 6.5mm Replaces Part Numbers: 1906945, 1906966, 1946400 (2) Brush Holders: For Starters Insulated & Tapped with 8-32 Threads Replaces Part Numbers: 5M3294, 665545 (2) Brush Springs: 20-27MT Series w/ Step-Down Field Case Replaces Part Numbers: 6515795, 6515795REM, 6599152, 6630180, 6630182 (4) Brush Holder Screws: Measurement: Standard Shank Length: 0.626" / 15.9mm Thread Size: 8-32 Head Style: Phillips Pan Head Notes: Self-Tapping Replaces part Numbers: 451-08013 (1) Steel Thrust Washer: Measurement: Standard ID: 0.5" / 12.7mm OD: 0.732" / 18.6mm Thickness: 0.063" / 1.6mm English Size: 1/2 Replaces Part Numbers: 456-01000, 456-31000 (1) Retaining Ring: ID: 0.52" / 13.2mm OD: 0.65" / 16.5mm Thickness: 0.067" / 1.7mm Replaces Part Numbers: 1928022 (1) Collar: ID: 0.563" / 14.3mm OD: 0.783" / 19.9mm Thickness: 0.157" / 4mm Notes: Drive Replaces: HDW9203

Reference Numbers:

6599152, 6630180, 6630182, 1926648, 443527, 1928022, 1838568, 1928023, 1928021, 62-1703, 1914842, 10470767, 1857960, 1862383, 1862391, 1906945, 1934485, D1689, 1894023, 1938743, 35058, 810620, D1676, MCX203, 1906966, 1946400, 665545, 6515795, 6515795REM, 1914842, 10470767, 1857960, 1862383, 1862391, 1906945, 1934485, 1894023, 1938743, 35058, 810620, D1676, MCX203, 1906966, 1946400, 665545, 6515795, 6515795REM, 6599152, 6630180, 6630182, 1926648, 443527, 1928022, 1838568, 1928023, 1928021, 62-1703, D1689, D1689, 1906945, 1934485, 1894023, 1938743, 35058, 810620, D1676, MCX203, 1906966, 1946400, 665545, 6515795, 6515795REM, 6599152, 6630180, 6630182, 1926648, 443527, 1928022, 1838568, 1928023, 1928021, 62-1703, 1914842, 10470767, 1857960, 1862383, 1862391

Product Category:

Misc.
View More: Misc. Replacement Parts

Product Group:

Electrical
View More: Electrical Replacement Parts
