Lawn Mower Deck Rebuild Kit Fits Sears Replaces 107515

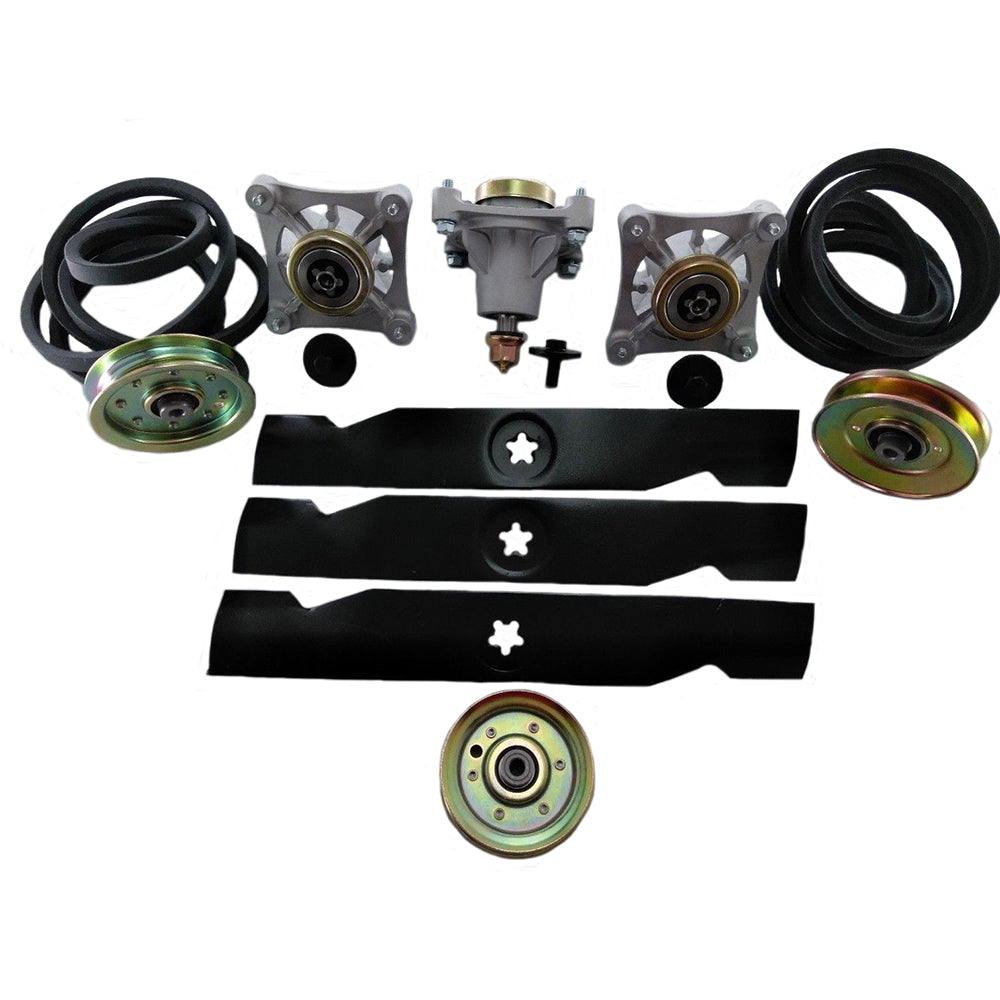

One New Aftermarket Lawn Mower Deck Rebuild Kit

Tech Info:
 -Includes:
 -
 -(3) Spindle Assembly:
 -4-Bolt
 -Short Housing
 -5 Point Star Center Hole
 -Replaces Part Numbers:
 -107515, 174356, 174358, 532-174356, 532174356, 539107515, 587125201, 587255601, 532 17 43-58, 532 17 43-56
 -
 -(3) Mower Blade:
 -Length: 16-5/8"
 -Width: 2-1/2"
 -5 Point Star Center Hole
 -Thickness: .204"
 -Replaces Part Numbers:
 -17-2920, 172920, 17390, 173920, 180054, 24679, 512258301, 532173920, 532180054, 539107519, 575938201, 575938301, 917173920, 917532173920, 917532180054, 917539107519, 917577203106, 954633774, 532 18 00-54, 532 17 39-20, 21547939
 -
 -(1) Idler Pulley:
 -Outer Diameter: 4-1/2"
 -Inner Diameter: 3/8"
 -Replaces Part Numbers:
 -175080, 181775, 184058, 189993, 193195, 532193195, 532189993, 532184058, 532175080, 532 18 99-93, 532 17 50-80
 -
 -(1) Flat Idler Pulley:
 -Outer Diameter: 3-3/4"
 -Overall Diameter: 4-1/2"
 -Inner Diameter: 3/8"
 -Material: Metal
 -Replaces Part Numbers:
 -175820, 193198, 532 17 58-20, 532175820, 532193198, 539107620, 596481401
 -
 -(1) Flat Idler Deck Pulley:
 -Outer Diameter: 3-7/8"
 -Inner Diameter: 3/8"
 -Height: 1-9/16"
 -Material: Metal
 -Replaces Part Numbers:
 -193197, 177968, 532193197, 532177968, 532 19 31-97, 532 17 79-68
 -
 -(1) Primary Belt:
 -Length: 90"
 -Material: Polyester Cord
 -Thickness: 0.424"
 -Type: Wrapped
 -Width: 5/8"
 -Replaces Part Numbers:
 -B87/5L900, 174368, 33907, 532-17-43-68, 532174368
 -
 -(1) Secondary Deck Belt:
 -Width: 5/8"
 -Length: 89"
 -Material: Polyester Cord
 -Thickness: 0.394"
 -Type: Wrapped
 -Replaces Part Numbers:
 -174369, 180808, 33908, 531300771, 532174369, 532180808, 532 17 43-69, 531 30 07-71, 532 18 08-08, 532-18-08-08

Made to Fit Sears:
 Riding Mower Models: GT5000
 Model Breaks: GT5000 (with 48" Deck)
 Replaces Part Number(s): 107515, 174356, 174358, 532-174356, 532174356, 539107515, 587125201, 587255601, 532 17 43-58, 532 17 43-56, 17-2920, 172920, 17390, 173920, 180054, 24679, 512258301, 532173920, 532180054, 539107519, 575938201, 575938301, 917173920, 917532173920, 917532180054, 917539107519, 917577203106, 954633774, 532 18 00-54, 532 17 39-20, 21547939, 175080, 181775, 184058, 189993, 193195, 532193195, 532189993, 532184058, 532175080, 532 18 99-93, 532 17 50-80, 175820, 193198, 532 17 58-20, 532175820, 532193198, 539107620, 596481401, 193197, 177968, 532193197, 532177968, 532 19 31-97, 532 17 79-68, B87/5L900, 174368, 33907, 532-17-43-68, 532174368, 174369, 180808, 33908, 531300771, 532174369, 532180808, 532 17 43-69, 531 30 07-71, 532 18 08-08, 532-18-08-08
