AH140818 Expansion Valve 1280333C2 1634663M1 Fits International Harvester

Name: AH140818 Expansion Valve 1280333C2 1634663M1 Fits International Harvester
SKU: AH140818
Price: 32.0 USD
Availability: InStock

AH140818 Expansion Valve 1280333C2 1634663M1 Fits International Harvester

£32.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

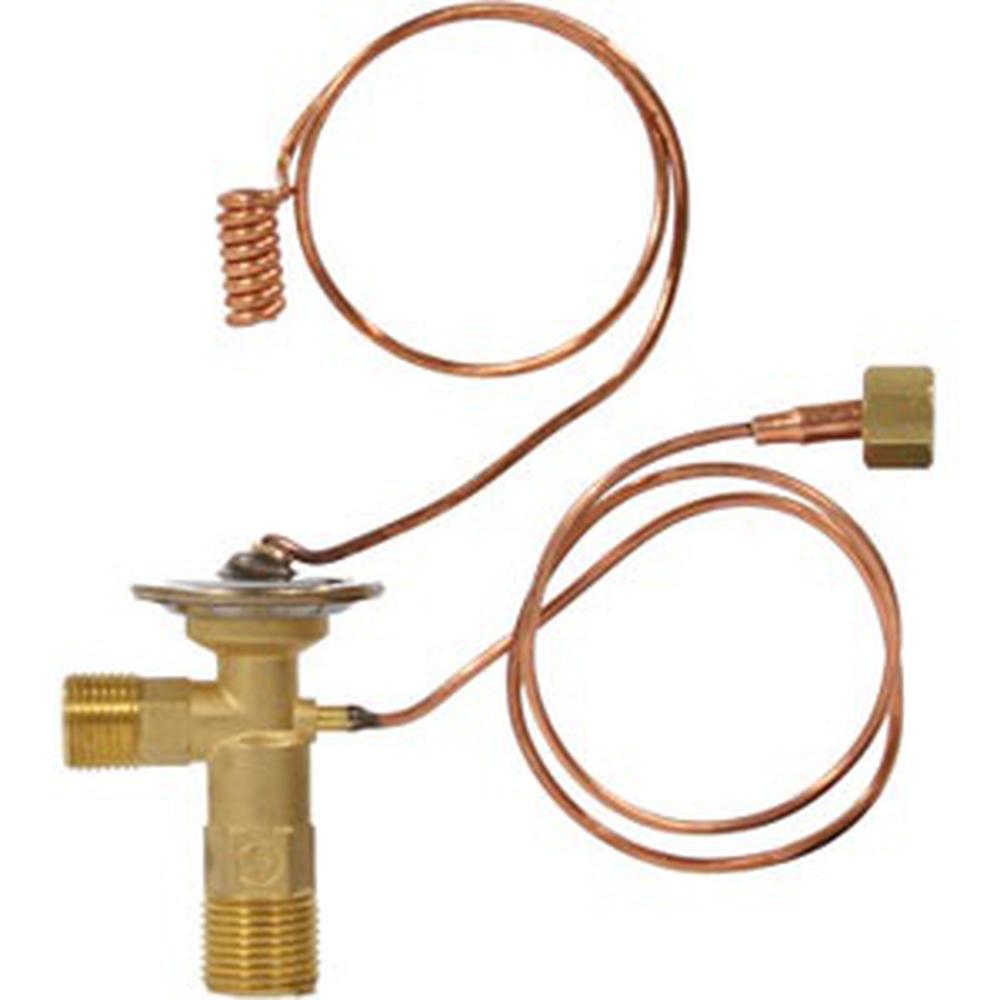

New Aftermarket Replacement O-Ring Type Externally Equalized Expansion Valve

Valve Dimensions and Measurements:
Press.Line to Evap.Inlet
Female Capillary End
Bulb: 3/8" Coil
Capillary Length: 12"
Equalizer: 13"-1/4"FO
Inlet: 3/8" Male
Outlet: 1/2" Male
Super Heat: 8
Tonnage: 2

Fits Case/International Harvester Combines:
1420, 1440, 1460, 1470, 1480, 715, 815, 915

Interchangeable Part Numbers:
A-904-304, 904-243, 904-288, 904-296, 909205, 909220, A-AG726761, A-AH140818, A-AL37525, AR58482, A-RE13886, A-RE206757, A-V70267, 118305C3, A-1280333C2, A-1634663M1, 261764, A-274571, 3038918M91, A-3321511M91, A-3380223M1, A-70259379, A-70259978, 70261764, A-773361M91, 904-213

Models This Part Fits:

3588, 4240, 1166HY/4, 4425, 3640S, 8840, 698, F100, 2855N, SPX4260, 2-115, 2640, 7010, 815, 9030V, 2850, 2-180, 4040S, 6060, 4850, 55-90, 895, 7455, 344E, 695, 1177, 3388, 2555, 7080, T5070, 150, 130-90, 9970, 675, 8825HP, TL100A, GH, 4440, 6000 Hi-Cycle, 4555, 256, 3525, 4435, 140-90, 3830, 100-90, 555A, TL80, 250, 715, 5500, 4450, 1915, 8830, 4760, 886, 685, 755B, 7722, 4700, 6700, 1086, SPX2130, 1440, 60-94DT, 6600, 7445, 554 ROGATOR, 210, T4050, 1068H, 203, TR85, 3155, 260, 8820, 70-90DT, SPX3185, 699, 755A, 115-90DT, 8450, 65-90DT, 892DLC, 276V, 915, 9910, 4955, 1075, 2750, 2755, 555B, 2940, 655B, 209, 5820, Dominator 96, 1640, 80-90DT, 690, 2320, 3788, 8850, 890A, L, 1166, 110-90, 1594, 2950, 72-94DT, 2250, 8550, 8640, 4350, 3040, 95, 3150, TR88, TL100, TR75, 8060, 444E, 782, 3055, F140, 4055, 7020, 200, 2705, 276, T5040, 3505, 2420, 4640, 1169HY/4, 60-90DT, E3, 80-90, 1055, Dominator 86, 7450, 8630, 3050, 7060, 2550, 4030, 655, TL90, 2840, 2745, 275, 1466, 6620, 6622, 2-150, 986, 160-90, 208, 622, 1065, 1157, 7580, 72-94, 7720, 786, 160, 7040, E, 4250, 1486, 4240S, 206, T5050, 2-110, 256V, TR96, 1075HY/4, 110-90DT, 595, 9030, 2355, 4186, 3185, 9965, 2040, 4166, 201, 5000, TL90A, 4255, 2675, 100-90DT, 1420, TL70, 268, 160-90DT, Dominator 76, 9920, 2775, 70-90, 8440, 555, 670, 3640, F115, 9950, 85-90DT, 2115, 1188, 4455, 1155, 2100, 484, 85-90, 3210, 7050, 180-90, 2-105, 4560, 240, 4000, 280 Farmer, 7000, 6100, 8430, 8080, Challenger 75, 9940, 4430, 616, 207, 3545, 7440, 4960, Challenger 65, 88-94DT, 9930, 276II, 644C, 3350, 3130, 5730, SPX3150, SPX3200, 1470, 690B, 2805, 8650, 3030, 9935, 9976, 1188HY/4, 7045, 8050, 8825, 6070, 7030, 88-94, 4630, 3140, 65-90, 4650, 1174HY/4, 1400, 3255, 5720, 180-90DT, 90-90, 4040, 585, 65-94, 2-135, 4840, 4230, 655A, 205, 2140, 270, 9030E, 4755, 1174, K, 1586, 1900, 1690, F120, 90-90DT, 60-94, 8040, 1169, 1158, 1085HY/4, 65-94DT, 1480, 2350, 8030, 2040S, 130-90DT, 3430, 3650, 2855, G, 82-94DT, 4750, 5830, 2450, M, 9960, 60-90, SPX3200B, F130, 544 ROGATOR, 1072, 2-155, TL80A, 220, 1085, F, 115-90, 6500, 82-94, 6080, 4050, Hydro 186, 800, 885, 1460, TR95, 8070, 2650, 2955, 1896, 140-90DT

Additional Information:

Valve Type: Peanut Inlet Size: #6 Inlet Type: O-ring Outlet Size: #8 Outlet Type: O-Ring Tonnage: 2.0T Superheat: 8 Capillary Length: 14-1/2" Equalizer Length: 18" Equalizer Fitting: 7/16-20 UNF

Reference Numbers:

86000562, V48724, V70267, 70741091, 82002793, 9966613, 9971586, AH204686, 2G0401, 2G-0401, 3E-9343, 80449624, E3NN19849AA, V70267, 274571, 47597455, 47597457, BN69872, 904-213, 904-304, 904-243, 904-288, 904-296, 909205, 909220, 909230, 70268470, 70261764, 70259978, 70259379, 700712704, 700711760, 261764, 274571, 47597455, 47597457, 80449624, E3NN19849AA, AH140818, AG726761, AL37525, AR58482, RE13886, RE206757, RE577432, F205550050180, 176.713.0, AG726761, 60012-5002, 118305C3, 1280333C2, 274571, 47597455, 47597457, 118305C3, 1280333C1, 1280333C2, 274571, 47597455, 47597457, 128033C1, 128033C2, 1634663M1, 3038918M91, 3321511M91, 3380223M1, 773361M91, 3551655M91, 274571, 9966200, AG726761, 1634663M1, 3038918M91, 3321511M91, 3380223M1, 773361M91, 3551655M91
