CS43518 New Bondioli & Pavesi Driveline w/ Shear Bolt Clutch 100 Series: Size 4
CS43518 New Bondioli & Pavesi Driveline w/ Shear Bolt Clutch 100 Series: Size 4
Couldn't load pickup availability

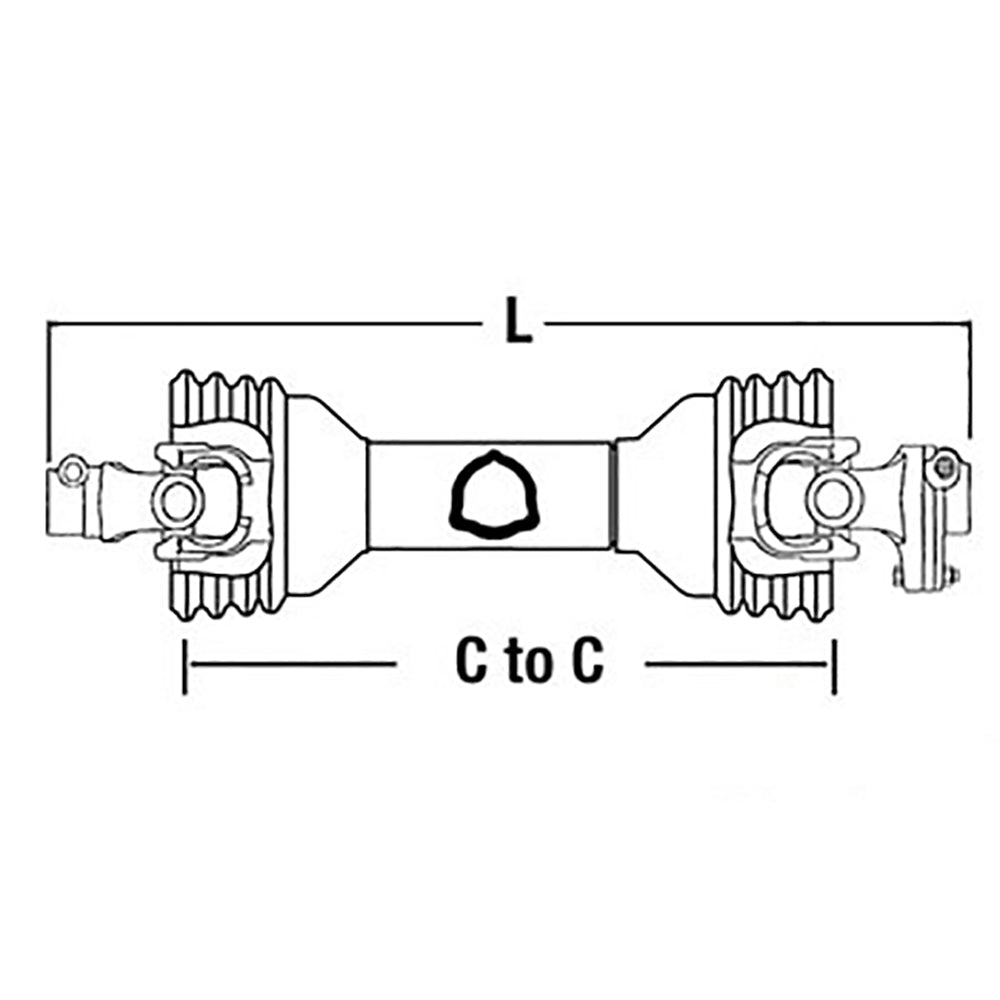

One New Aftermarket Replacement Driveline with Shear Bolt Clutch that fits Bondioli & Pavesi 100 Series: Size 4 • It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out. Complete Driveline with Shear Bolt Clutch. 100 series, Fits CATegory 3, size 4 driveline. Minimum C-to-C length: 35" (885 mm), Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 42" (1065 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 Spline with shear bolt clutch. Fits Bondioli & Pavesi 100 Series. Size: 4 Total Collapsed Length: 1065mm / 42" Tractor: 1-3/8"-6 Implement: 1-3/8" -6 w/ S.B. Clutch C to C Max: 1310 mm/ 52" C to C Min: 885mm / 35" Fits CATegory: 3 (35HP) Series: 100 Replaces Part Number: DRF30-0060, CS43518, 70030-35144, 70030-35145, 70030-35254, 70030-35255
