SSM100 Universal Narrow Base Mechanical Suspension
SSM100 Universal Narrow Base Mechanical Suspension
Regular price
£250.00 GBP
Regular price
Sale price
£250.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Scissor Type Seat Suspension Fits Several Brands and Tractor Models including Fits Allis Chalmers, Fits Ford/New Holland, Fits John Deere, Fits Kubota, Fits Massey Ferguson, Minneapolis Moline, White, Oliver
Also Fits Bobcat Skid Steer Loaders, and Yanmar Compact Tractors.
Tech Info:- New Seat Suspension with Weight Adjustment from 132 lbs. to 264 lbs.Slide Track has Horizontal Adjustment of 6.700", & 4.000" Suspension Stroke.Hydraulic Shock Absorber Diameter 1.250"

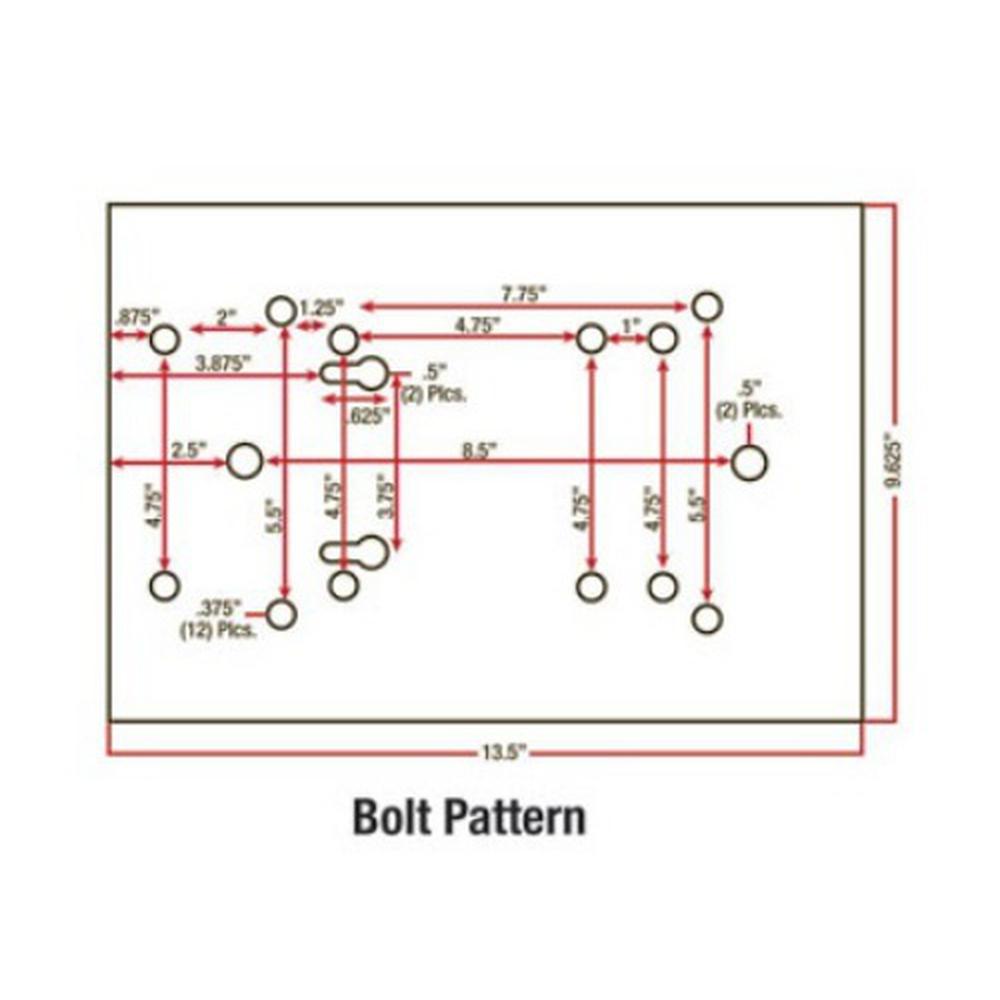

Please see second photo for Bolt Hole Pattern.Dim A (1) Weight Adj. From 132 lbs. to 264 lbs.Dim B (2)Slide Track Horizontal Adj. of 6.700"Dim C (3)4.000" Suspension StrokeDim D (4)1.250" Dia. Hyd. Shock Absorber
Suspension for Seat with Part Numbers: TMS111BL, TMS111YL, TMS111GR, TMS444BL, TMS444YL, TMS444GR, LGS100YL & LGS100BL
PLEASE NOTE: This is a replacement Scissor Suspension Base ONLY.ÃDoes not include Seat or Slide Track Assembly.
View full details
Also Fits Bobcat Skid Steer Loaders, and Yanmar Compact Tractors.
Tech Info:- New Seat Suspension with Weight Adjustment from 132 lbs. to 264 lbs.Slide Track has Horizontal Adjustment of 6.700", & 4.000" Suspension Stroke.Hydraulic Shock Absorber Diameter 1.250"
Please see second photo for Bolt Hole Pattern.Dim A (1) Weight Adj. From 132 lbs. to 264 lbs.Dim B (2)Slide Track Horizontal Adj. of 6.700"Dim C (3)4.000" Suspension StrokeDim D (4)1.250" Dia. Hyd. Shock Absorber
Suspension for Seat with Part Numbers: TMS111BL, TMS111YL, TMS111GR, TMS444BL, TMS444YL, TMS444GR, LGS100YL & LGS100BL
PLEASE NOTE: This is a replacement Scissor Suspension Base ONLY.ÃDoes not include Seat or Slide Track Assembly.
Replaces Part Numbers:
